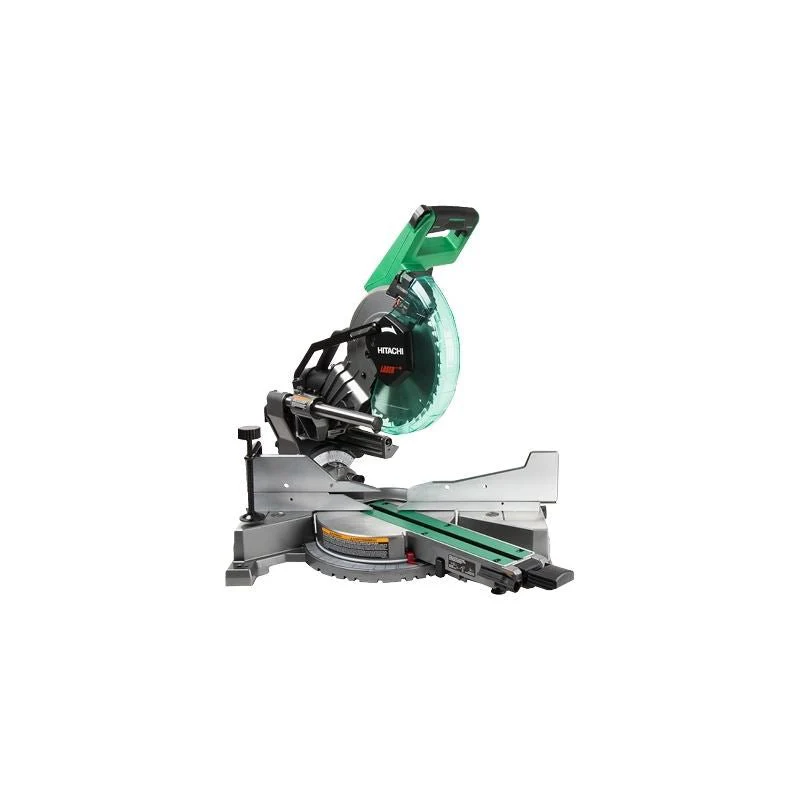

Hitachi C10FSHC 10" Sliding Dual Compound Miter Saw with Laser Marker

he Hitachi C10FSHC 10" Sliding Compound Dual Bevel Miter Saw with Laser Marker is designed to deliver a professional finish. It is equipped with a zero rear clearance slide system that decreases the footprint of the saw by up to a foot, enabling the saw to sit flush against a wall or on a benchtop without compromising the range of movement. The C10FSHC also features Hitachi’s first up-front bevel lock for quick and easy bevel adjustments along with miter detent override for faster transitions between miter angles. The adjustable tool-less laser marker and LED light give the user accurate cuts and visibility right where it’s needed.

Includes:

• 10" 40T TCT Saw Blade (310878)
•  Dust Bag (998845)
• Vise Assembly
• 13mm Box Wrench (940543



  Specifications

  Blade Size	10"
  Full-Load Current Amps	15
  Slide Type	Fixed Rail
  No-Load Speed	3,200/RPM
  Miter Angle Range	0-55 degree L & 0-60 degree R
  Bevel Angle Range	0-48 degree L/R
  Max Cut 0 Degree	11-1/2" x 3-1/2"  12-1/2" x 2-1/2"
  Max Cut Miter Left/Right 45 Degree	8" x 3-1/2"  8-3/4" x 2-1/2"
  Max Cut Bevel Left 45 Degree	11-1/2" x 3-1/4"  12-1/2" x 1-5/8"
  Max Cut Bevel Right 45 Degree	11-1/2" x 1"  12-1/2" x 3/4"
  Laser Marker	Equipped
  LED Light	Equipped
  Saw Blade Drive System	Gear type
  Front Bevel Lock Lever	Equipped
  Tool Dimensions ( W x L x H)	23-13/16" x 30-3/16" x 26-1/16"
  Miter Cutting Range	L 55 degree R 60 degree
  Bevel Cutting Range	L/R 48 degrees
  Weight	45.6 lbs
