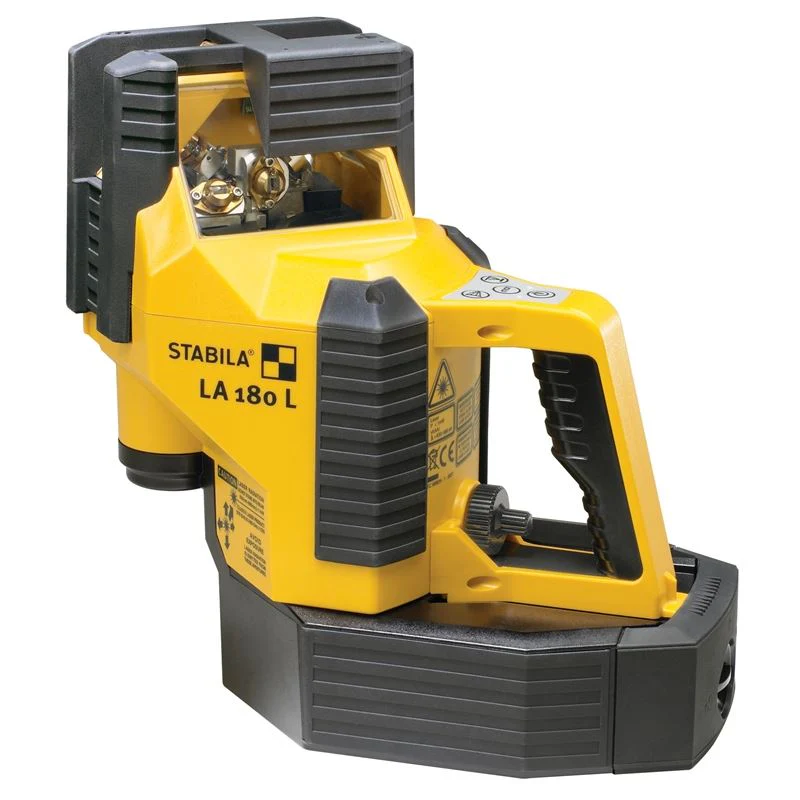

Stabila LA180L Layout Station with Auto Alignment
LA180L Layout Station with Automatic Alignment
Catalog #
02180
Self Leveling Range
± 5°
Working Range
Visual 65'/328' with receiver
Accuracy Tolerance Level
+/- 3/32" @ 100'
Accuracy Tolerance Up/Down Beams
+/- 3/32" @ 100'
Battery Run Time
20 Hours
Batteries
4-D
Laser class
2
Output
<1mW
Laser wavelength
635nm
Dimensions
10.5"X10.25"X6"
Tripod mount
5/8"X11
#02180 Includes:
LA180L laser, 2 target plates, transceiver w/bracket, batteries, laser goggles, manual and case
$1,759.19
Stabila LA180L Layout Station with Auto Alignment—
$1,759.19
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LA180L Layout Station with Automatic Alignment
Catalog #
02180
Self Leveling Range
± 5°
Working Range
Visual 65'/328' with receiver
Accuracy Tolerance Level
+/- 3/32" @ 100'
Accuracy Tolerance Up/Down Beams
+/- 3/32" @ 100'
Battery Run Time
20 Hours
Batteries
4-D
Laser class
2
Output
<1mW
Laser wavelength
635nm
Dimensions
10.5"X10.25"X6"
Tripod mount
5/8"X11
#02180 Includes:
LA180L laser, 2 target plates, transceiver w/bracket, batteries, laser goggles, manual and case
