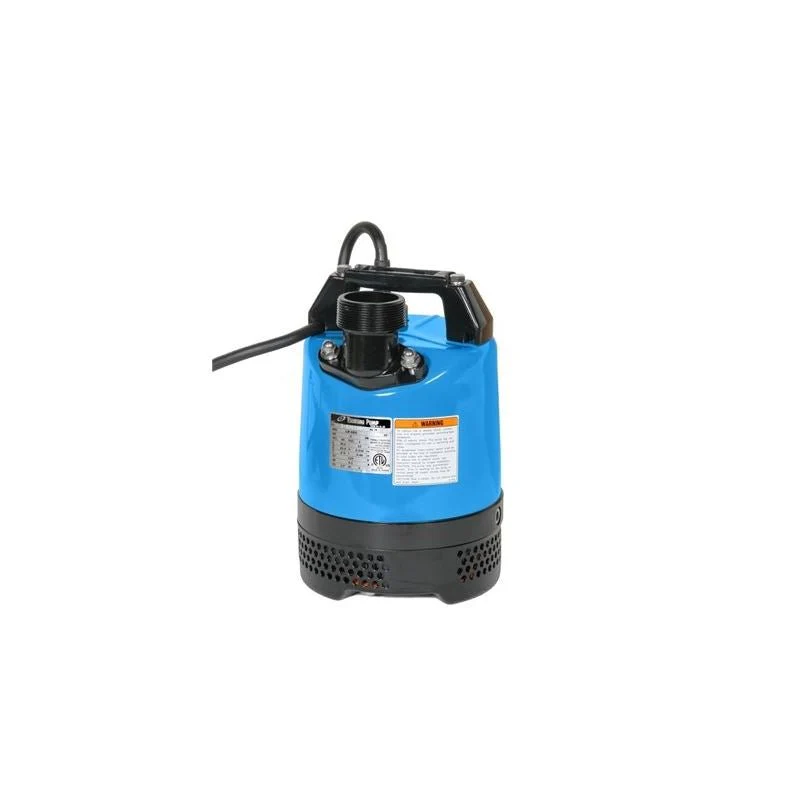

Tsurumi LB-480 Electric Submersible Pump

LB-480 Slimline design pump allows to fit into 8" pipes. Powerful pumps built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability

Technical Specifications

Motor Output (HP): 2/3
Phase: Single
Discharge Bore (in.): 2
Voltage/Amp: 110/6.1
Cable Length (ft.): 32
Dimension (Dia x H, in.): 7-11/16 x 11-1/4
Continuous Running Water Level (in.): 2
Pump Weight (lbs.): 28
